Swiss Boat Lift / Ascenseur ŕ bateaux de Suisse

Kraftwerk Wildegg - Brugg (NOK)

River Aare





Where the fishes take the funicular !
Où les poissons prennent le funiculaire!

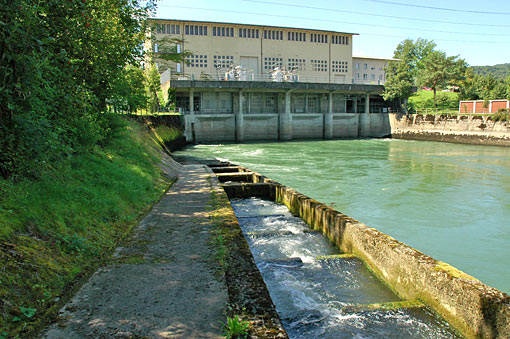

Wildegg-Brugg Powerstation, downstream side.
The fishes of the Aaare river which want to swim up the stream have to use the fich lift. You can see the beginning of the fish lift on the foreground!



Click to enlarge

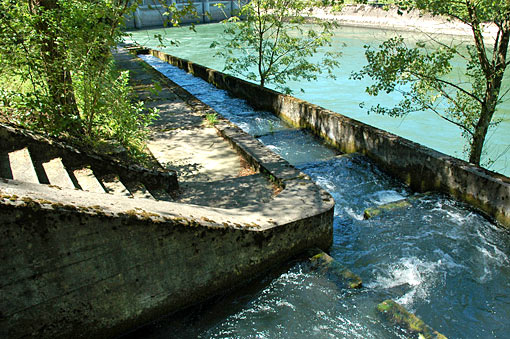

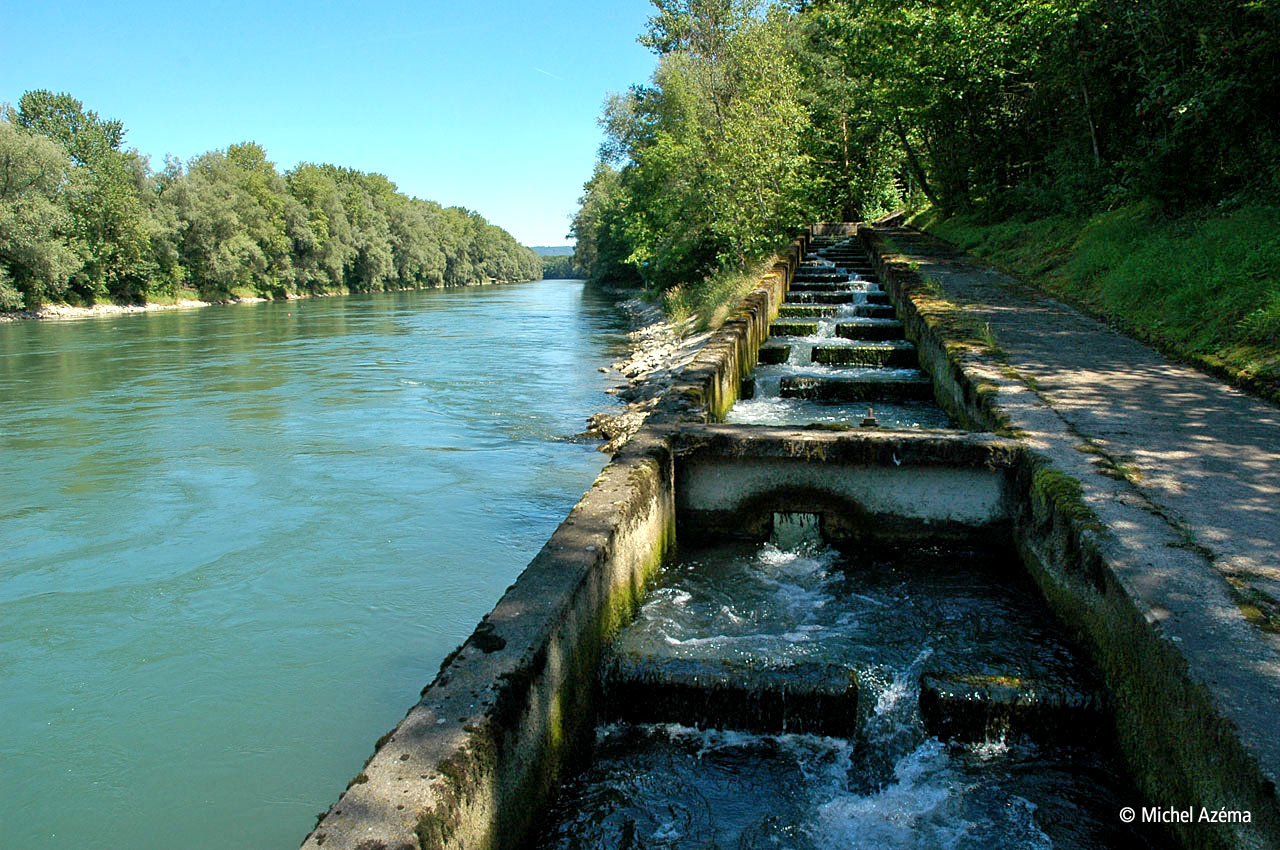

The fish lift continues as a staircase.



The fish staircase continues

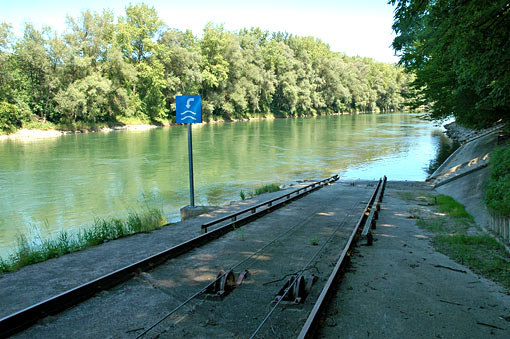

At the downstream side too,there is also a real cable lift which is used for the boats.

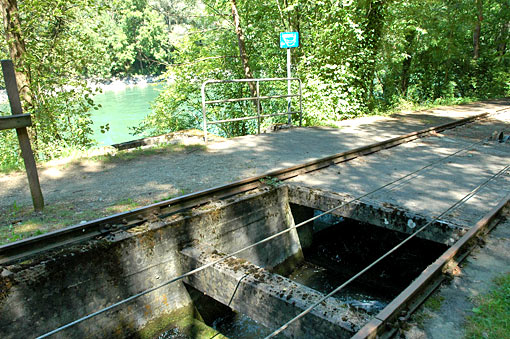

Then here the fish lift joins the boat lift and will follow the inclined railway under the track!.



Click to enlarge

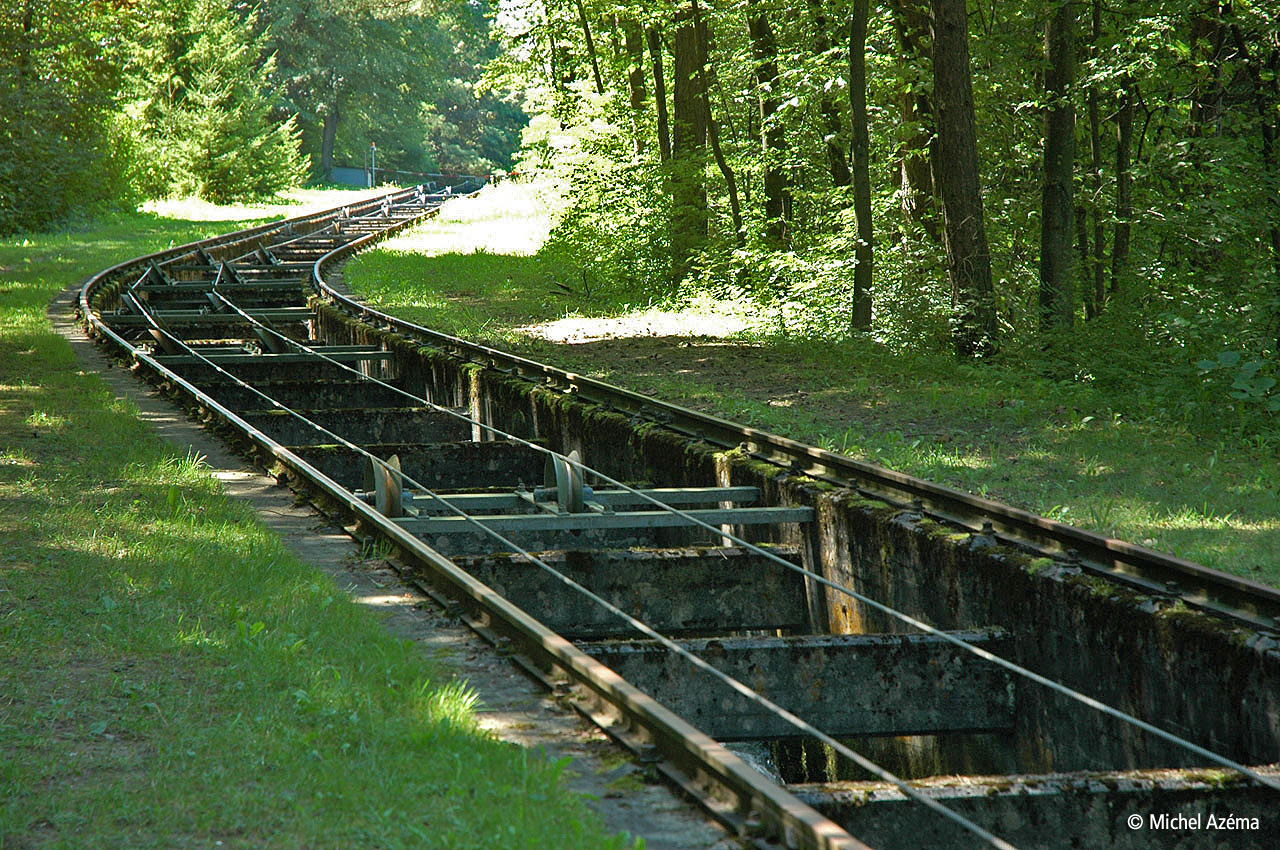

From there the fish lift and the boat lift are merged and are climbing the slope into the forest.





.

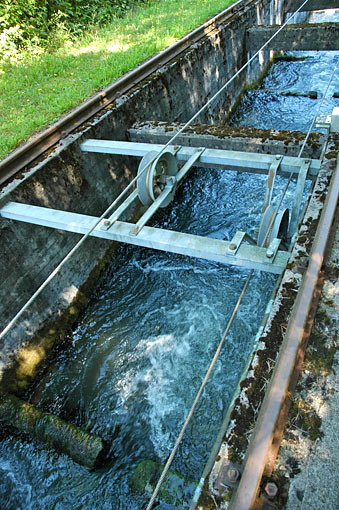

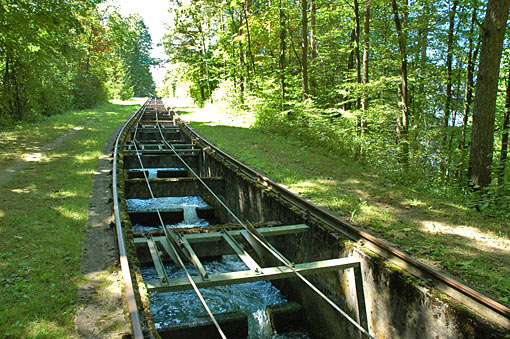

The fish lift under the funicular.



The highest point of the line.

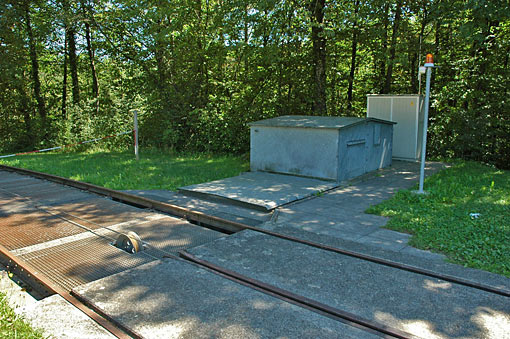

In this box, the engine of the funicular.
This is also the point where the fishes reach the level of the upstream Aare river, so they leave here the funicular to reach the river!

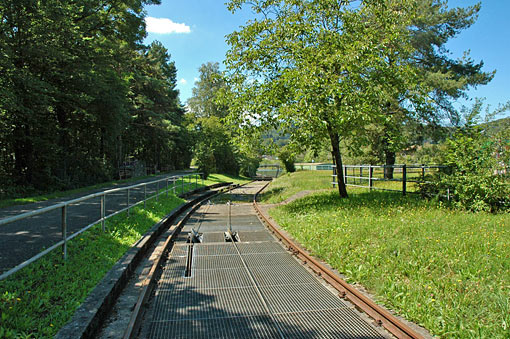

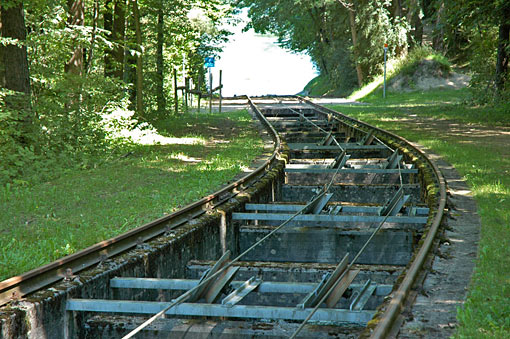

The track is now going down to the upstream river.



Click to enlarge

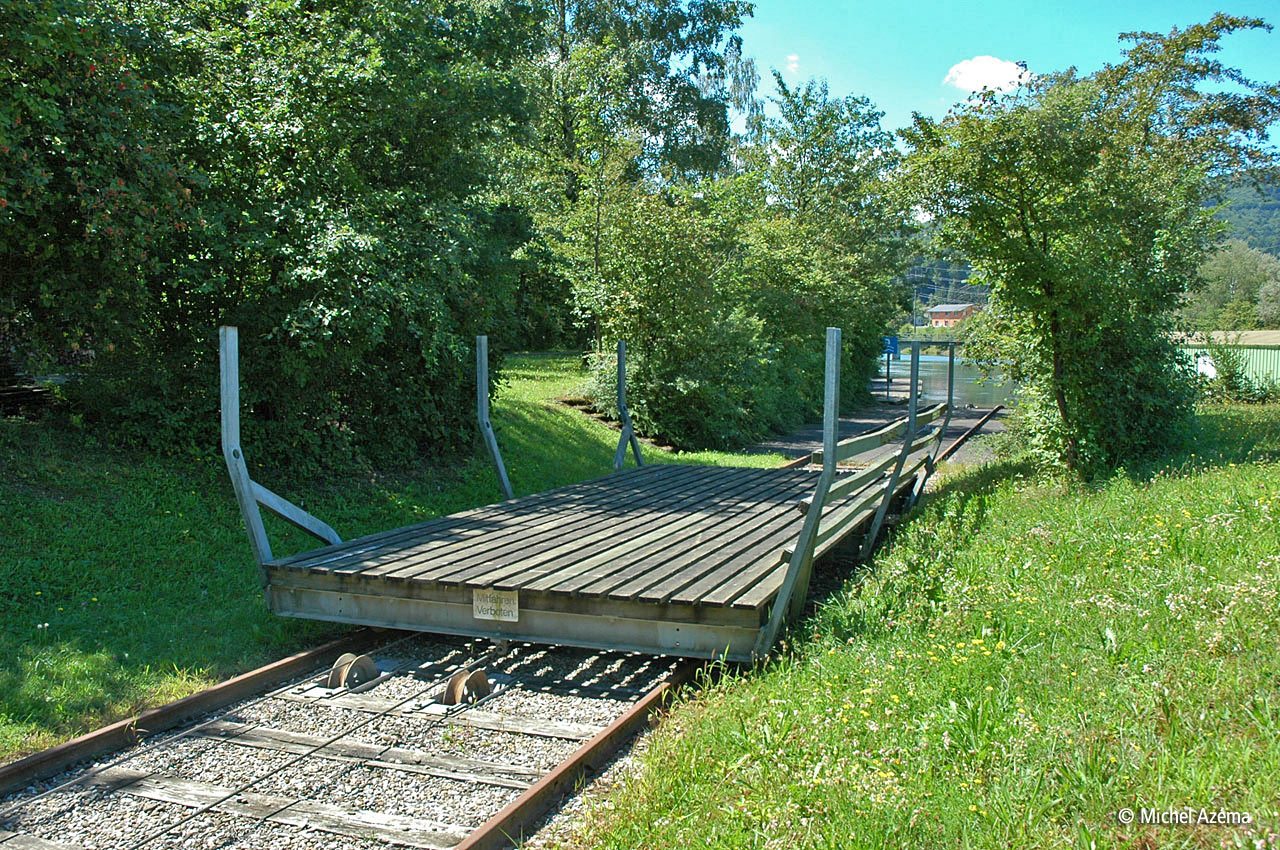

The boat carrier.

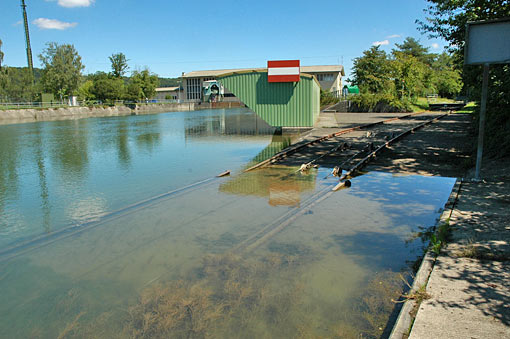

The upstream end of the track which goes under the water.

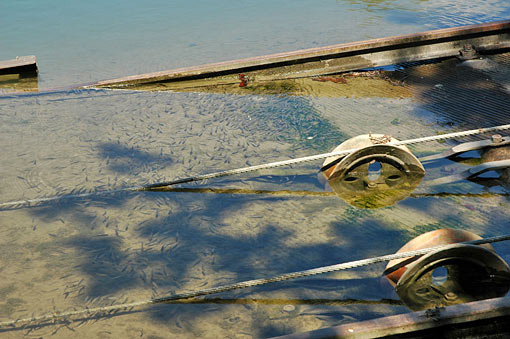

The baby fishes which were born in the upstream part of the Aare river... Are they supposed to return there by the fish lift at the end of their life to procreate?








>> Interactive satellite photo <<



Technical Datas
Start 1953
End ...
Status
Type of funicular
Type of tracks
Energy
Bottom station
Top station
Length
Difference of levels
Speed
Maximum Gradient
Gauge
Manufacturer



Company Informations
