The incline 1 / Le plan incliné 1

The incline 1 (or Plan incliné 1 on the map) is the incline which was built to link the bottom station of the funicular with the tramway line Grenoble-Chapareillan.
This incline is very interesting because its main function was to bring a freight wagon from the tramway line to the side of the bottom station of the funicular.
The following elements were built to achieve this objective:
- a 100 meters linking track from the tramway line.
- a turntable for the freight wagon.
- a pier where the wagon could climb up on a flatcar which was moved by the cable incline.
- the cable incline itself with its small top station.
- another pear for unloading on the side of the bottom station of the funicular.
- an horizontal crane to carry the freight from the wagon to the funicular cabin.
Le plan incliné 1 (sur la carte) est ce transport à câble qui fut construit pour relier la gare inférieure du funiculaire à la ligne de tramway Grenoble-Chapareillan.
Ce plan incliné est très intéressant car sa fonction était d'amener un wagon de marchandise depuis la ligne de tramway jusqu'à côté de la gare du funiculaire.
Pour cela les éléments suivants furent construits:
- une voie de raccordement de 100 mètres depuis la ligne de tramway.
- une plaque tournante pour faire pivoter le wagon dans l'axe du plan incliné.
- un quai à partir duquel le wagon pouvait rouler sur une plateforme (truck) qui était actionnée par le plan incliné.
- le plan incliné à câble lui-même avec sa petite gare supérieure.
- un quai de débarquement sur le côté de la gare du funiculaire.
- une poutrelle horizontale servant pour le transbordement du fret depuis le wagon directement sur la cabine du funiculaire.
One very rare photo showing the incline 1 with its flatcar (on the right of the photo, not on the left!.)

Une des rares photos montrant le plan incliné 1 avec son truck (à droite de la photo, pas à gauche!).





(collection Michel Azéma)

Original map of the incline 1 showing all the elements.

Plan original du plan incliné 1 avec tous les éléments qui le composent.

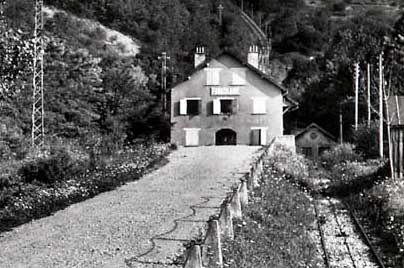

The incline 1 in the 1950's. Note that the cable and rails are still there. Note also the small house which is the top station of the incline 1.
Le plan incliné dans les années 50. Notez que le câble et les rails sont toujours là. Notez également la petite maison qui est en fait la cabine abritant le treuil du plan incliné.

(collection Michel Azéma)

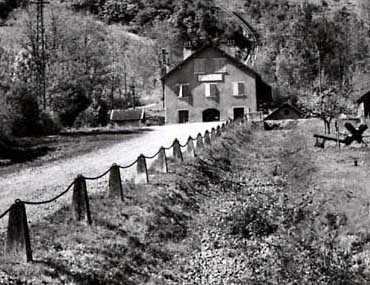

The same vue some years later. Rails and cable have been removed.
La meme vue quelques années plus tard. Les rails et le câble ont été enlevés.

(collection Michel Azéma)

Today.
The small house where was the engine of the incline 1. Note the small black rectangular hole below the window, it is the hole for the cable. Note the unloading pear with the crane for the transshipment to the funicular.

Aujourd'hui.
La cabine qui abritait le treuil du plan incliné 1. Notez le petit rectangle noir sous la fenetre, c'est l'ouverture par laquelle passait le câble. Notez également le quai de déchargement ainsi que la poutrelle servant au transbordement du fret directement sur le funiculaire.

The area where was the incline 1. The road in the background is the site where was the tramway Grenoble-Chapareillan.

L'emplacement où se trouvait le plan incliné 1. Sur la route du fond circulait le tramway Grenoble-Chapareillan.


TECHNICAL DATAS
Start

1924

End

1947

 Status



Type of funicular

Type of tracks

Energy

Lower station
RN 90
Top station
Montfort-Funicular
Length
120 m
Number of cabins
1
Maximum Gradient
8,9 %
Minimum Gradient 6,7 %
Gauge 1,2 m
