Part 2 - South Cliff Lift


The Scarborough South Cliff Tramway Company Limited was created in 1873 to link the South Cliff Esplanade with the South Sands where is located the Spa Buildings, containing a theatre, a concert-hall and a restaurant.

The South Cliff Lift finally opened on July 6 1875 and was the first funicular in Great Britain.

The lift was designed by Crossley Brothers of Manchester, the cars were constructed by the Metropolitan Carriage Company of Birmingham.

The lift was first using water as conterweight. It was using sea water. Two gas engines (replaced by steam pumps in 1879) were installed to pump the sea water to the upper station to fill the top car (and also a bathing pool!). The water pipe was between the two paralell tracks.

In 1947, the hydraulic system was replaced by electricity.

In 1997, the lift was modified to be completly automatic.

At the moment the lift is owned by the Scaborough Borough Council.

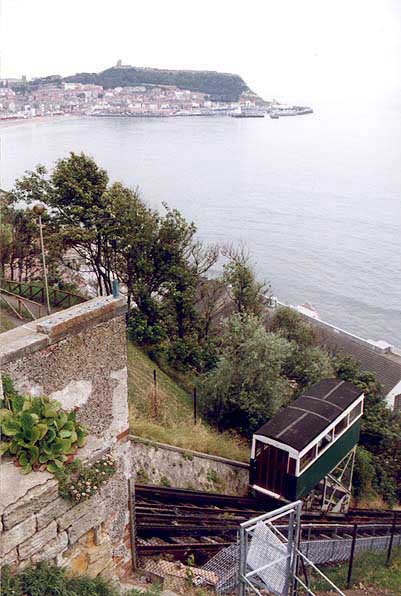

   The South Bay with the Scarborough Castle on the top of the hill and the Spa Complex Buildings at the bottom of the lift.

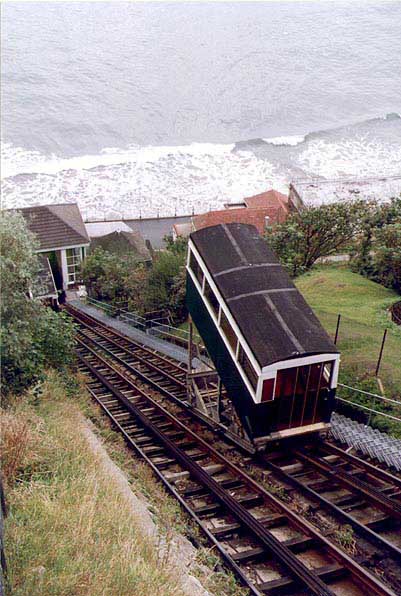

 The South Sands.

Note that the passengers get into the cabin directly from the front and get out from the back.





 The top station at the Esplanade.



 The top station at the Esplanade

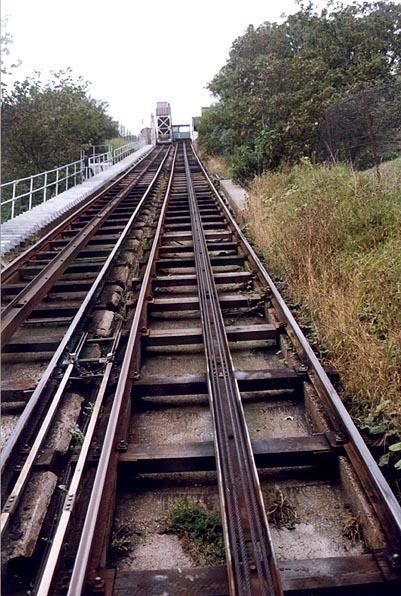

 Details of the tracks and the cables.

There are 4 cables to pull the cabins. They are located into a central rail. A fifth cable is used for the security to activated two pairs of jaws which grip the central rail.





 Details of the botoom of a cabin. Note the two pairs of jaws.
The red and white stuffs are the electronic contactors to automatically stop the cabins.





 The station at the bottom near the sands



 The South Clift Lift

Note the doors at the rear of the cabins



TECHNICAL DATAS
Start

1875
End

 ...
Type of funicular


Type of tracks

Type of energy

1875- 1947

since 1947
Bottom station

South Sands (2 m)
Top station

Esplanade (29,5 m)
Length

87 m
Difference of levels

27,5 m
Gradient

63 %
Gauge

1,423 m
